STAINLESS STEEL LINK CHAIN-弹簧 |弹簧钩|铁链|南通仁峰金属制品有限公司

Update: 2014/9/3 View:

Introduction

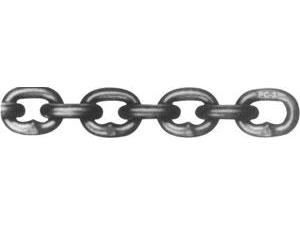

STAINLESS STEEL LINK CHAIN SUS304/316

JAPANESE STANDARD　　　　　　　　　　　　　　　　　　DIN766 STANDARD

直径 DIA STAINLESS STEEL LINK CHAIN SUS304/316 JAPANESE STANDARD DIN766 STANDARD DIN5685 STANDARD DIN763(DIN5685C) STANDARD KOREAN STANDARD AUSTRALIAN STANDARD ASTM80 STANDARD NACM84/90 STANDARD JAPANESE STANDARD	内长 INSIDE LINGTH	内宽 INSIDE WIDTH	重T/M WEIGHT/M
MM	MM	MM	KG
2	12	3.5	0.07
3	24	5	0.15
3	19	5	0.16
4	26	6	0.27
4	20	6	0.29
5	27	7	0.44
5	20	7	0.49
5.5	30	8	0.54
5.5	24	10	0.60
6	31	9	0.65
6	24	9	0.72
7	37	10	0.88
7	28	10	0.96
8	38	11	1.18
8	32	12	1.27
9	39	13	1.55
9	36	14	1.61
10	42	15	1.95
12	54	20	2.77
12	48	19	2.88

直径 DIA STAINLESS STEEL LINK CHAIN SUS304/316 JAPANESE STANDARD DIN766 STANDARD DIN5685 STANDARD DIN763(DIN5685C) STANDARD KOREAN STANDARD AUSTRALIAN STANDARD ASTM80 STANDARD NACM84/90 STANDARD JAPANESE STANDARD	内长 INSIDE LINGTH	内宽 INSIDE WIDTH	重T/M WEIGHT/M
MM	MM	MM	KG
2	12	3.5	0.07
3	16	5	0.163
4	16	5	0.32
5	18.5	6	0.50
6	18.5	7.2	0.80
7	22	8.4	1.10
8	24	9.6	1.40
9	27	10.8	1.80
10	28	12	2.30
11	31	13.2	2.68
12	36	14.6	3.11
13	36	15.6	3.80
16	45	19.2	5.70

DIN5685 STANDARD　　　　　　　　　　　　　　　　　　　　　　DIN763(DIN5685C)

直径 DIA STAINLESS STEEL LINK CHAIN SUS304/316 JAPANESE STANDARD DIN766 STANDARD DIN5685 STANDARD DIN763(DIN5685C) STANDARD KOREAN STANDARD AUSTRALIAN STANDARD ASTM80 STANDARD NACM84/90 STANDARD JAPANESE STANDARD	内长 INSIDE LINGTH	内宽 INSIDE WIDTH	重T/M WEIGHT/M
MM	MM	MM	KG
2	12	4	0.071
2.5	14	5	0.114
3	10	6	0.165
3.5	18	7	0.23
4	19	8	0.30
5	21	10	0.50
6	24	12	0.73
7	28	14	1.00
8	32	16	1.30
9	36	18	1.65
10	40	20	2.05
12	48	24	2.9
13	52	26	3.45

直径 DIA STAINLESS STEEL LINK CHAIN SUS304/316 JAPANESE STANDARD DIN766 STANDARD DIN5685 STANDARD DIN763(DIN5685C) STANDARD KOREAN STANDARD AUSTRALIAN STANDARD ASTM80 STANDARD NACM84/90 STANDARD JAPANESE STANDARD	内长 INSIDE LINGTH	内宽 INSIDE WIDTH	重T/M WEIGHT/M
MM	MM	MM	KG
2	22	4	0.061
2.5	24	5	0.10
3	26	6	0.15
3.5	28	7	0.20
4	32	8	0.27
4.5	34	9	0.35
5	35	10	0.43
6	42	12	0.63
7	49	14	0.86
8	52	16	1.10
9	59	18	1.41
10	65	20	1.75
13	85	26	2.95
16	100	32	4.45
