STEEL WIRE ROPE
Update: 2014/9/4 View:
- Brand:
- Type:
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Introduction
RF-GSS0212
RF-GSS0212
STEEL WIRE ROPE

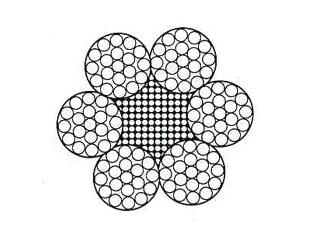

6x19+IWR
|
Nominal
Diameter (mm) |
Approximate
Weight (kg/100m) |
(N/mm^2)Norminal T/S
|
||||||||||
|
1470
|
15710
|
1670
|
1770
|
1870
|
||||||||
|
(KN)Min B/L
|
||||||||||||
|
FC
|
IWS
IWR |
FC
|
IWS
IWR |
FC
|
IWS
IWR |
FC
|
IWS
IWR |
FC
|
IWS
IWR |
FC
|
IWS
IWR |
|
|
2
|
1.38 | 1.52 | 1.81 | 1.95 | 1.93 | 2.08 | 2.05 | 2.22 | 2.17 | 2.35 | 2.30 | 2.48 |
|
3
|
3.11 | 3.43 | 4.06 | 4.39 | 4.33 | 4.69 | 4.61 | 4.98 | 4.89 | 5.28 | 5.16 | 5.58 |
|
4
|
5.54 | 6.10 | 7.22 | 7.80 | 7.71 | 8.33 | 8.20 | 8.87 | 8.69 | 9.40 | 9.18 | 9.93 |
|
5
|
8.65 | 9.52 | 11.20 | 12.20 | 12.00 | 13.00 | 12.80 | 13.80 | 13.50 | 14.60 | 14.30 | 15.50 |
|
6
|
12.50 | 13.70 | 16.20 | 17.50 | 17.30 | 18.70 | 18.40 | 19.90 | 19.50 | 21.10 | 20.60 | 22.30 |
|
7
|
17.00 | 18.70 | 22.10 | 23.90 | 23.60 | 25.50 | 25.10 | 27.10 | 26.60 | 28.70 | 28.70 | 34.40 |
|
8
|
22.10 | 24.40 | 28.80 | 31.20 | 30.80 | 33.30 | 32.80 | 35.40 | 34.70 | 37.60 | 36.70 | 39.70 |
|
10
|
34.60 | 38.10 | 45.10 | 48.80 | 48.10 | 52.10 | 51.20 | 55.40 | 54.30 | 58.70 | 57.40 | 62.00 |
|
12
|
49.80 | 54.90 | 64.90 | 70.20 | 69.40 | 75.0 | 73.80 | 79.80 | 78.20 | 84.60 | 82.60 | 89.40 |
|
14
|
67.80 | 74.70 | 88.40 | 95.60 | 94.6 | 102.0 | 100.0 | 108.0 | 106.0 | 115.0 | 112.0 | 121.0 |
|
16
|
88.60 | 97.50 | 115.0 | 124.0 | 123.0 | 133.0 | 131.0 | 141.0 | 139.0 | 150.0 | 146.0 | 158.0 |
|
18
|
112.0 | 123.0 | 146.0 | 158.0 | 156.0 | 168.0 | 166.0 | 179.0 | 176.0 | 190.0 | 186.0 | 201.0 |
|
20
|
138.0 | 152.0 | 180.0 | 195.0 | 192.0 | 208.0 | 205.0 | 221.0 | 217.0 | 235.0 | 229.0 | 248.0 |
|
22
|
167.0 | 184.0 | 218.0 | 236.0 | 233.0 | 252.0 | 248.0 | 268.0 | 263.0 | 284.0 | 277.0 | 300.0 |
|
24
|
199.0 | 219.0 | 259.0 | 281.0 | 277.0 | 300.0 | 295.0 | 319.0 | 312.0 | 338.0 | 330.0 | 357.0 |
|
26
|
234.0 | 258.0 | 305.0 | 329.0 | 325.0 | 352.0 | 346.0 | 374.0 | 367.0 | 397.0 | 388.0 | 419.0 |
|
28
|
271.0 | 299.0 | 353.0 | 382.0 | 377.0 | 408.0 | 401.0 | 434.0 | 426.0 | 460.0 | 450.0 | 486.0 |
|
30
|
311.0 | 343.0 | 406.0 | 439.0 | 433.0 | 469.0 | 461.0 | 498.0 | 489.0 | 528.0 | 516.0 | 558.0 |
|
32
|
354.0 | 390.0 | 462.0 | 499.0 | 493.0 | 533.0 | 524.0 | 567.0 | 556.0 | 601.0 | 587.0 | 635.0 |
|
34
|
400.0 | 440.0 | 521.0 | 564.0 | 557.0 | 602.0 | 592.0 | 640.0 | 628.0 | 679.0 | 663.0 | 717.0 |
|
36
|
448.0 | 494.0 | 584.0 | 632.0 | 624.0 | 675.0 | 664.0 | 718.0 | 704.0 | 761.0 | 744.0 | 804.0 |
|
38
|
500.0 | 550.0 | 651.0 | 704.0 | 695.0 | 752.0 | 740.0 | 752.0 | 784.0 | 848.0 | 828.0 | 896.0 |
|
40
|
554.0 | 610.0 | 722.0 | 780.0 | 771.0 | 833.0 | 820.0 | 800.0 | 869.0 | 940.0 | 918.0 | 993.0 |
|
42
|
610.0 | 672.0 | 796.0 | 860.0 | 850.0 | 919.0 | 904.0 | 887.0 | 958.0 | 1030.0 | 1010.0 | 1090.0 |
|
44
|
670.0 | 738.0 | 873.0 | 944.0 | 933.0 | 1000.0 | 992.0 | 978.0 | 1050.0 | 1130.0 | 1110.0 | 1200.0 |
|
46
|
732.0 | 806.0 | 954.0 | 1030.0 | 1010.0 | 1100.0 | 1080.0 | 1070.0 | 1140.0 | 1240.0 | 1210.0 | 1310.0 |
|
48
|
797.0 | 878.0 | 1040.0 | 1124.0 | 1110.0 | 1201.0 | 1181.0 | 1277.0 | 1252.0 | 1354.0 | 1322.0 | 1430.0 |
|
50
|
865.0 | 952.0 | 1128.0 | 1220.0 | 1205.0 | 1303.0 | 1281.0 | 1386.0 | 1358.0 | 1469.0 | 1435.0 | 1552.0 |
|
52
|
935.0 | 1030.0 | 1220.0 | 1320.0 | 1303.0 | 1409.0 | 1386.0 |
1499.0 |
1469.0 | 1589.0 | 1552.0 | 1678.0 |
|
54
|
1009.0 | 1111.0 | 1316.0 | 1423.0 | 1405.0 | 1520.0 | 1495.0 | 1616.0 | 1584.0 | 1713.0 | 1672.0 | 1810.0 |
|
56
|
1085.0 | 1195.0 | 1415.0 | 1530.0 | 1511.0 | 1634.0 | 1607.0 | 1738.0 | 1704.0 | 1842.0 | 1800.0 | 1946.0 |
|
58
|
1164.0 | 1281.0 | 1518.0 | 1641.0 |
1621.0
|
1753.0 | 1724.0 | 1865.0 | 1828.0 | 1976.0 | 1931.0 | 2088.0 |
|
60
|
1245.0 | 1371.0 | 1624.0 | 1756.0 |
1735.0
|
1876.0 | 1845.0 | 1996.0 | 1956.0 | 2115.0 | 2066.0 | 2235.0 |
